Wide range of superior Solid Wheels for
Hydraulic Pallet Trucks

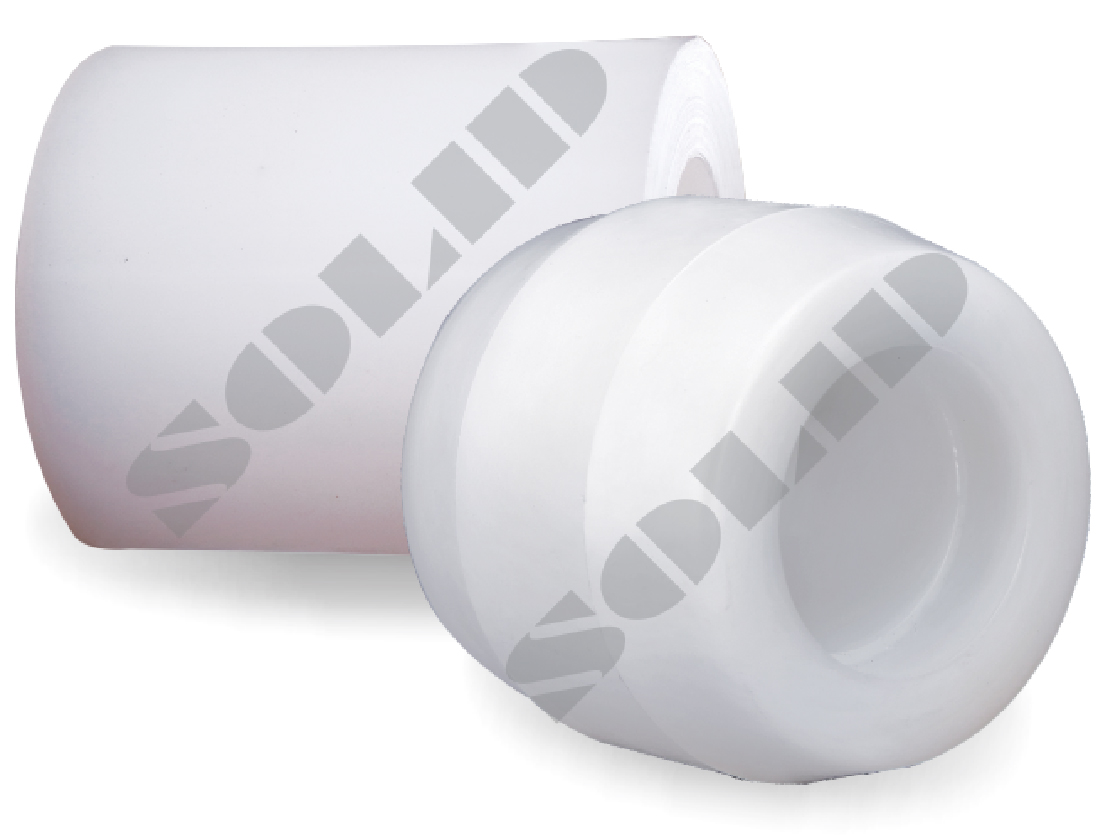

Hard Polymer Heavy Duty Wheels made from Ultra High Molecular Weight Poly Ethylene [ UHMW – PE ] Material
These wheels are manufactured from Ultra High Molecular Weight Poly Ethylene (UHMW-PE) material – Self lubricating material. These wheels have very high load carrying capacity, high impact strength and high wear resistance; hence it does not crack under shock of impact load as it happens in nylon or fiber wheels. The material has got very low co-efficient of friction, hence less pulling or pushing efforts required. The material does not get affected with chemical and acids. This material is not hard like steel / cast iron hence these wheels do not damage the floor.
Thus, based on our customer experience, our UHMW Wheels are most favorable and recommended for Pallet Trucks use.
Hardness: (70 +/- 5) shore D scale
Max – Working Temp: 110°C
Break Elongation: 450%
Density: 0.94 GR/Cm3
Tensile Strength: 440 Kg/Cm3
Abrasion Loss: Min.3-8 mm3 / 100 SW
Impact Strength [Notch]: No Break

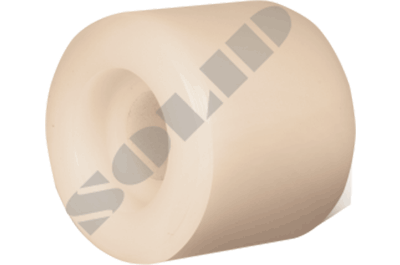

Load Wheels (Rollers) Series 904
Available Sizes
 |
 |
 |
 |
|---|---|---|---|
| 75 To 85 | 60 | 30 | 700 |
| 75 To 85 | 65 | 30 | 760 |
| 75 To 85 | 70 | 30 | 825 |
| 75 To 85 | 75 | 30 | 890 |
| 75 To 85 | 80 | 30 | 955 |
| 75 To 85 | 85 | 30 | 1020 |
| 75 To 85 | 90 | 30 | 1085 |
| 75 To 85 | 95 | 30 | 1150 |
| 75 To 85 | 100 | 30 | 1215 |
* Custom sizes available on request.
Product Inquiry!
Cast Polyurethane Bonded on Cast Iron (CI) Center Wheels Series 613 / 614
Cast PU tyred wheels bonded on C.I. / Aluminum / Steel centers for heavy and extra heavy duty applications.
Wheel Hardness : 92 ( ± 5) shore A Scale
Working Temperature : -30°C to + 70°C
Steering Wheels Series 613
Available Sizes
| Dia (mm) | Width (mm) | Hub Width | Bearing Groove | Load |
|---|---|---|---|---|
|
|
 |
|
|
| 180 | 50 | 60 | 6204/5 | 575 |
| 200 | 50 | 60 | 6204/5 | 600 |
* Custom sizes available on request.
Product Inquiry!
Load Wheels (Rollers) Series 614
Available Sizes
| Dia (mm) | Width (mm) | Bearing Groove | Load |
|---|---|---|---|
|
|
|
|
| 75 To 85 | 65 | 6204/5 | 500 |
| 75 To 85 | 70 | 6204/5 | 550 |
| 75 To 85 | 75 | 6204/5 | 585 |
| 75 To 85 | 80 | 6204/5 | 625 |
| 75 To 85 | 85 | 6204/5 | 650 |
| 75 To 85 | 90 | 6204/5 | 700 |
| 75 To 85 | 95 | 6204/5 | 735 |
| 75 To 85 | 100 | 6204/5 | 775 |
Product Inquiry!

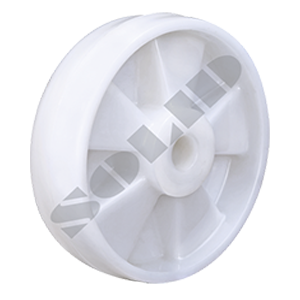

Polypropylene Co-Polymer (CP) Wheels / Nylon (NY) Wheels
Product made out of Poly Propylene Co-Polymer / Polymide by using injection molding technique under controlled pressure and temperature. Light in Weight but fair load carrying capacity. No effects of acids or alkaline chemicals.
Series 808 PPCP /
Series 408 Nylon
Steering Wheel
|
|
|
CP |
NY |
|---|---|---|---|---|
| 175 | 47 | 25 | 325 | 425 |
| 180 | 50 | 25 | 325 | 425 |
| 200 | 50 | 25 | 350 | 450 |
For PPCP Wheels / Rollers: Wheel Hardness: 70 (±5) shore D Scale, Working Temperature: -30°C to +70°C
For Nylon Wheels / Rollers: Wheel Hardness: 80 (±5) shore D Scale, Working Temperature: -30°C to +80°C

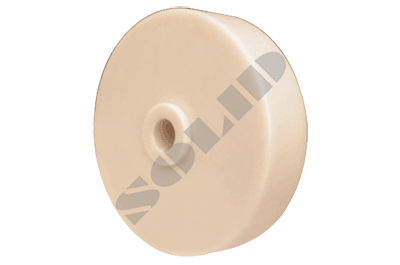

Cast Nylon Wheels CNY
Wheel made of Cast Nylon having precision Ball Bearing 2RS.
Non-marking, Non-staining, corrosion resistant and stainless.
Range: 2" Dia To 12" Dia
Hardness: 80 (±3) shore D Scale
Working Temperature: -40°C to +120°C
* Custom sizes available on request
Cast Iron Wheels & Rollers (CI)
Cast Iron Wheels are resistance to high Temperature. Recommended for medium loads. Not good against acids and chlorinated solvent. Having high load carrying capacity, abrasion resistance, maintenance free. Resistance against oil and grease.
