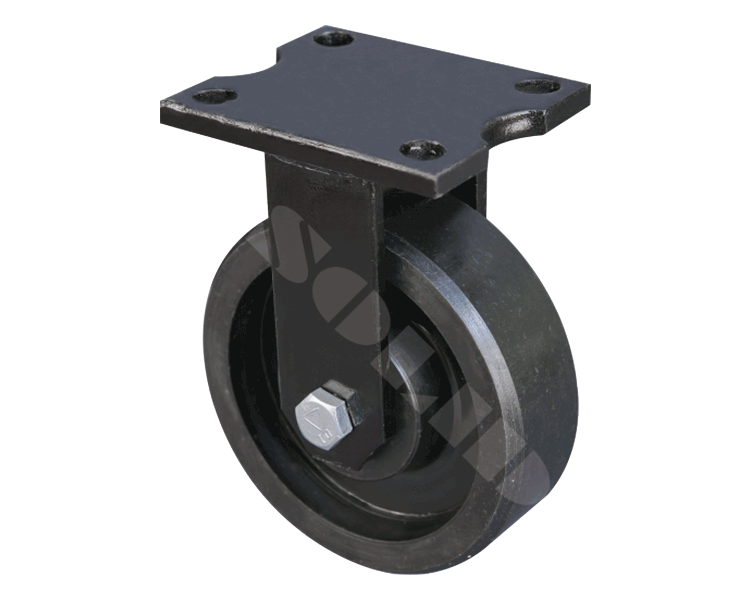

Heavy Duty M. S. Plate Fabricated Caster with Double Thrust Bearings.

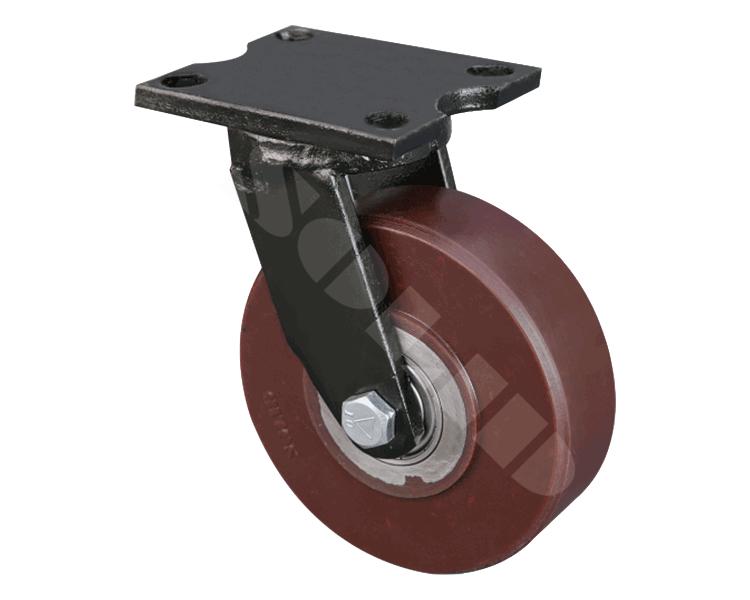

Heay Duty M. S. plate fabricated Swivel Caster, Steel Welded construction fitted with 2 Nos. Thrust Bearings provided with grease nipple and dust proof nylon seal. Solid central king pin, bolted and manually secured.

Available Sizes


Sr. No. Wheel
Dia X Width
Bore (mm) Plate Size Bolt Spacing Overall Height Load Carrying Capacity Symbol
UHM PPCP BRT CPUCI CI
1 100 x 50 10 125 x 100 100 x 75 155 300 150 200 200 300
2 150 x 50 10 125 x 100 100 x 75 205 450 200 250 350 400
3 200 x 50 10 125 x 100 100 x 75 255 500 250 300 450 500

Code Reading / Ordering Example:
Heavy Duty M.S. Plate Type Fabricated with Double Thrust Bearings having UHM Wheel, SIze 150 x 50 Swivel with Break.
HDPTF DTB/UHM/150×50/SBK
