Polyurethane Tyred on PPCP (PUCP) Center Wheels Series 783 / 788
Or Nylon (PUNY) Center Wheels Series 743 / 748


Polyurethane materials having high breaking point offers excellent elasticity. Wheels center made of PPCP / Nylon material and made of Thermo Plastic Urethane (TPU). Wheels are injection moulded under Controlled Temperature and Pressure. Non Marking, Smooth & Silent.



High static load capacity, Low abrasion and high chemical resistance against salt, grease and acids.
Wheel Hardness: 90 (+/-5) Shore A Scale.
Working Temperature: -30°C To +70°C

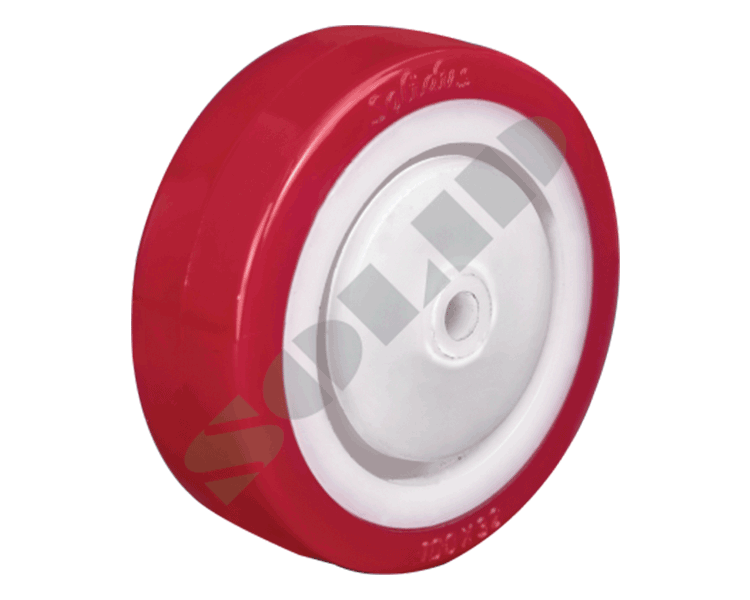

TPU on PPCP – Series 783


Placeholder
Product Inquiry!

Available Sizes

Dia Width Bearings Load
Symbol Symbol Symbol Symbol
50 25 40
75 25 6202 70
75 32 6202 80
100 32 6202 80
100 38 6202 150
100 50 6203 200
150 50 6203 325
200 50 6204 450

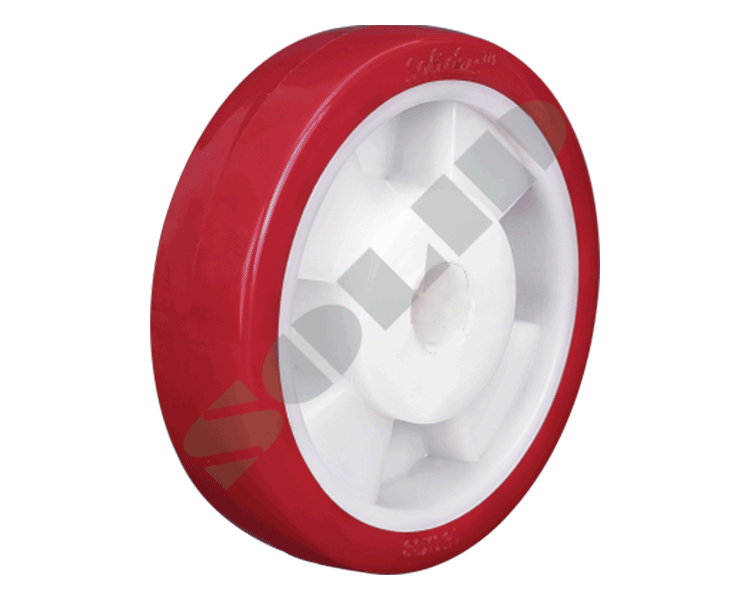

TPU on Nylon – Series 748


Placeholder
Product Inquiry!

Available Sizes

Dia Width Bearings Load
Symbol Symbol Symbol Symbol
100 50 6203 160
125 38 6203 180
125 50 6203 225
150 38 6203 330
150 50 6203 375
200 50 6204 450
