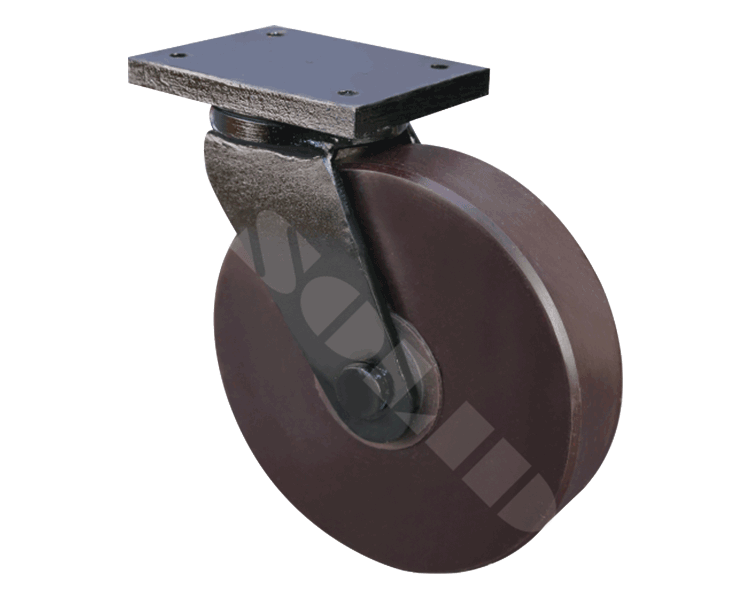

Extra Heavy Duty M. S. Plate Fabricated Swivel Caster Having
Thrust & Taper Roller Bearing

Heavy Duty M.S. Plate fabricated robust steel welded construction, provided with 1 no. Thrust Bearing and 1 no. Taper Roller Bearing in swivel head. Caster having grease nipple and dust proof nylon seal, having welded with center king-pin bolted and manually secured.

Available Sizes

Sr. No. Wheel
Dia X Width		 Bore (mm) Plate Size Bolt Spacing Overall Height Load Carrying Capacity Symbol
UHM CP BRT PUCI CI
1 100 x 50 12.5 125 x 100 100 x 75 170 400 200 150 400 500
2 150 x 50 12.5 125 x 100 100 x 75 220 600 300 250 500 650
3 200 x 50 12.5 125 x 100 100 x 75 270 750 400 300 700 850
4 250 x 50 12.5 125 x 100 100 x 75 320 900 – 450 850 1050
5 250 x 75 12.5 125 x 100 100 x 75 370 1050 – 600 1000 1200
6 300 x 75 12.5 125 x 100 100 x 75 420 1200 – 800 1100 1500

Code Reading / Ordering Example:
Extra Heavy Duty, M.S. Plate Fabricated, Fitted with Thrust & Taper Roller Bearing, with UHM, 300 x 75 Swivel Caster.
EHD PTF//TTR/UHM/300 x 750/S
