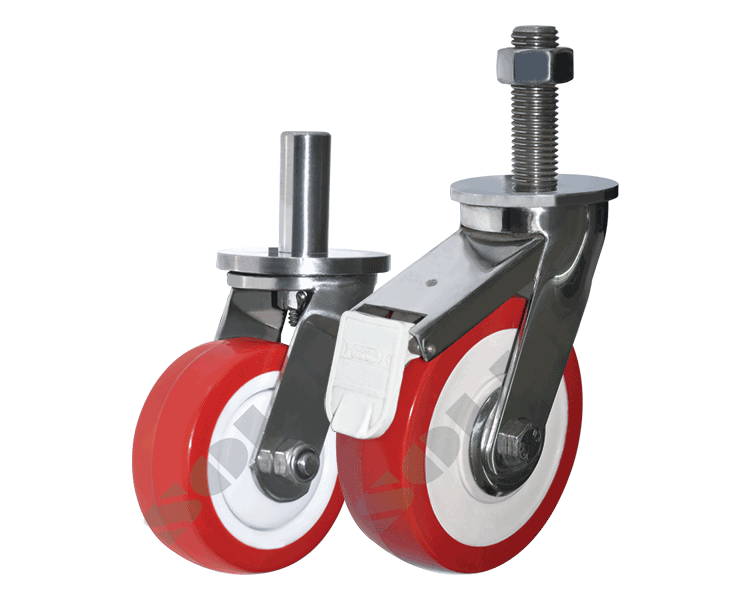

Medium Duty & Heavy Duty Fabricated Stainless Steel Plate / Pin / Stud Type Casters

Medium Duty



Stainless Steel (AISI 304) Argon Arc Welded Construction. Swivel bracket with twin race Ball Bearings in the swivel head, bolted and secured central king-pin, bolted axle for wheel with self locking nut.


Product Inquiry!

Heavy Duty



Heavy Duty Argon Arc Welded Construction, Stainless Steel (AISI 304), Swivel Bracker with Double Race Ball Bearings in swivel head. For Heavy Duty castor, provided with Thrust Bearings set. Lubrication Swivel Head sealing with grease nipple. Bolted and secured central king pin, bolted wheel-axle with self locking nut.


Product Inquiry!

Available Sizes


Wheel MD Caster HD Caster Plate Type (PT) Pin(PI)/Stud(ST)Type
Dia
MM
Width
MM
Load
Capacity
Dynamic
Load
Capacity
Static
Total
Height
Load
Capacity
Dynamic
Load
Capacity
Static
Total
Height
Plate
Size
Bolt
Hole
Spacing
Bolt
Holes
Pin
Size
Stud
Size
Length
MM
50 25 30 45 80 60 70 90 75 x 50 60 x 30 6 19 M10 50
65 25 40 55 85 68 80 95 75 x 65 54 x 43 6 19 M11 50
75 25 45 60 95 75 100 105 75 x 65 54 x 43 6 19 M12 50
75 32 65 90 105 115 150 115 75 x 75 55 x 55 9 22 M12 50
100 32 80 120 135 130 170 145 75 x 75 55 x 55 9 22 M12 50
100 38 100 145 135 160 200 145 100 x 80 80 x 60 10 22 M16 50
100 50 120 190 135 180 250 145 100 x 100 75 x 75 12 22 M16 50
125 32 115 150 155 165 225 170 100 x 80 80 x 60 10 22 M16 50
125 38 125 160 155 200 260 170 100 x 80 80 x 60 10 22 M16 50
125 50 150 230 155 230 325 170 125 x 100 100 x 75 12 32 M20 50
150 50 210 265 180 305 410 210 125 x 100 100 x 75 12 32 M20 50
200 50 220 390 235 410 500 255 125 x 125 100 x 100 12 32 M20 50

Code Reading / Ordering Example:
Medium Duty, Fabricated Stainless Steel (304 Quality), Plate Type with PU on PPCP Wheel, Size 100 MM Dia x 32 MM Width Swivel with Brake.
MD SS4 PT/PUCP/100×32/SBK


All sizes are available in Plate Type / Pin Type / Stud Type for which use code PT for Plate Type, PI for Pin Type & ST for Stud Type respectively.

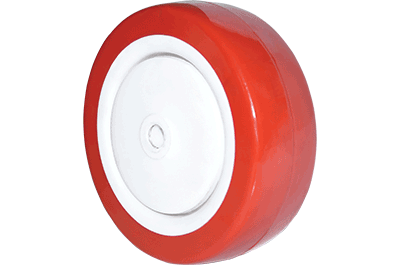

Series 783


PU on CP Center

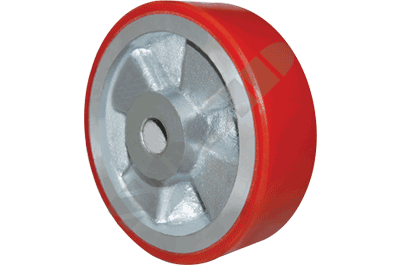

Series 658


CPU on Alu. Center

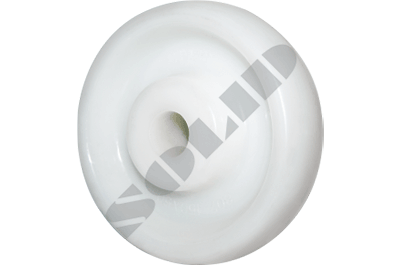

Series 993


UHMW – PE Wheel

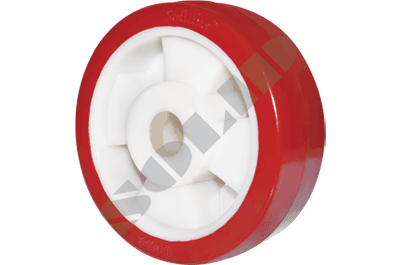

Series 748


PU on Nylon Center

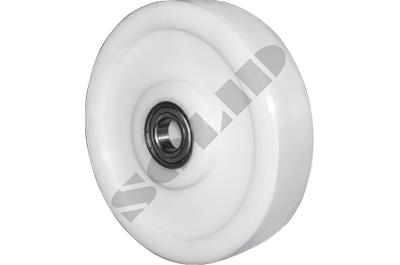

Series 807


CP Wheel
