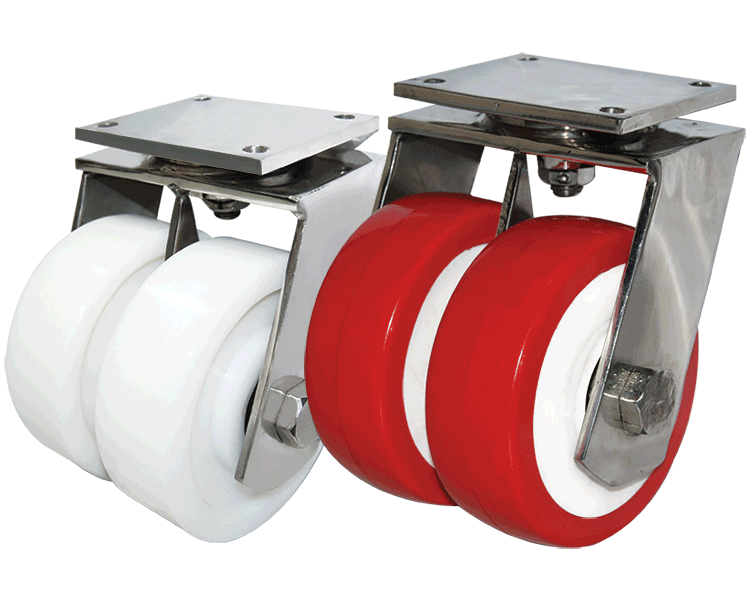

Heavy Duty Twin Wheels
Stainless Steel Caster


Heavy duty Argon arc welded stainless steel (AISI 304) Construction. Swivel bracket with double race ball bearings in the Swivel head or provided with Thrust Bearings set. Lubrication Swivel head sealing, with grease Nipple. Bolted and secured central king-pin. Bolted Wheel-Axle with self locking nut.

Available Sizes


Wheel Plate Type Pin(PI)/Stud(ST)Type
Dia
MM
Width
MM
Load
Capacity
Dynamic
Load
Capacity
Static
Total
Height
Plate
Size
Bolt
Hole
Spacing
Bolt
Holes
Pin
Size
Stud
Size
Length
MM
50 25 100 150 100 75 x 50 60 x 30 6 19 M10 50
65 25 125 175 105 75 x 65 54 x 43 6 19 M11 50
75 25 135 185 115 75 x 65 54 x 43 6 19 M12 50
75 32 150 200 125 75 x 75 55 x 55 9 22 M12 50
100 32 175 225 155 75 x 75 55 x 55 9 22 M12 50
100 38 200 250 155 100 x 80 80 x 60 10 22 M16 50
100 50 250 300 155 100 x 100 75 x 75 12 22 M16 50
125 32 225 275 180 100 x 80 80 x 60 10 22 M16 50
125 38 250 300 180 100 x 80 80 x 60 10 22 M16 50
125 50 300 400 180 125 x 100 100 x 75 12 32 M20 50
150 50 350 450 220 125 x 100 100 x 75 12 32 M20 50
200 50 400 500 265 125 x 125 100 x 100 12 32 M20 50
250 50 600 750 315 125 x 150 100 x 125 14 35 M24 50

Code Reading / Ordering Example:
Twin Wheels, Fabricated Stainless Steel (340 Quality), Plate Type with UHMW-PE Wheel, SIze 100 MM DIa x 50 MM Width, Swivel with Brake.
TW / SS4 PT / UHM / 100 x 50 / SBK


All sizes are available in Plate Type / Pin Type / Stud Type for which use code PT for Plate Type, PI for Pin Type & ST for Stud Type respectively.


Series 783


PU on CP Center


Series 658


CPU on Alu. Center


Series 993


UHMW – PE Wheel


Series 748


PU on Nylon Center


Series 807


CP Wheel
